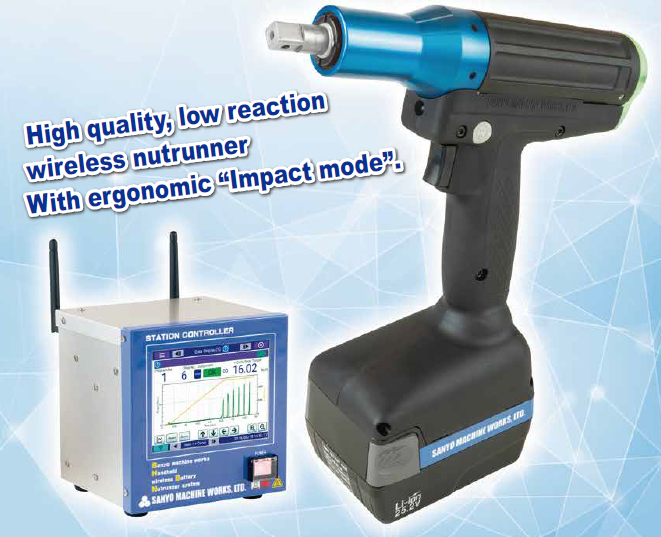

SANYO SHBN Series – Smart Handheld Wireless Battery Nutrunner

The SANYO SHBN Series stands for Smart Handheld Wireless Battery Nutrunner — a premium cordless fastening solution engineered for modern industrial assembly operations. Built with SANYO’s advanced fastening technology, the SHBN series combines high precision, flexible wireless operation, and data-driven control to support production environments where mobility, accuracy, and information flow are critical.

Key Features

• High-Speed, Lightweight, High-Precision Tool
  The SHBN nutrunner delivers both high accuracy and high speed fastening with a lightweight design that reduces operator strain. An ergonomic Impact Mode suppresses reaction force during tightening, making tool operation smoother and less fatiguing even at higher torque levels.

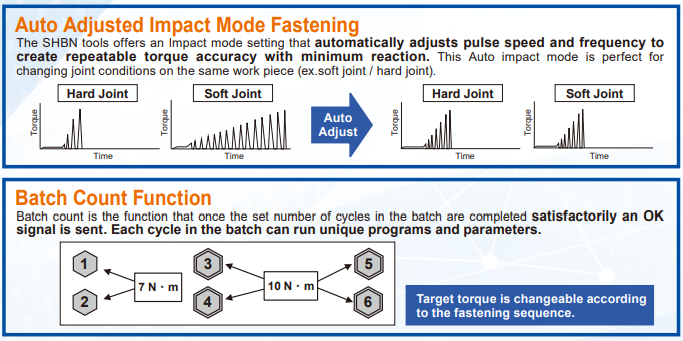

• Impact Mode & Auto Adjusted Impact Mode
  The tool supports multiple impact fastening strategies — including Auto Adjusted Impact Mode — which automatically optimizes pulse speed and frequency for repeatable torque accuracy, even with varying joint hardness conditions on the same workpiece.

• Batch Count Function
  The SHBN series includes a batch count function that tracks the number of completed tightening cycles. This supports complex production logic and helps maintain process consistency across multi-stage operations.

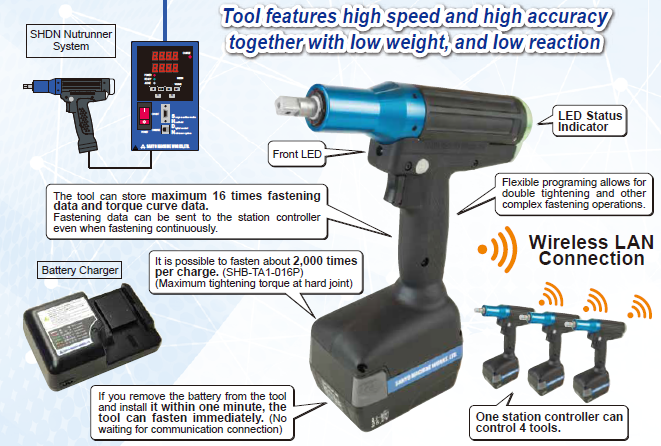

• Fastening Data & Torque Waveform Storage
  The tool can store up to 16 sets of fastening and torque waveform data, which can be transferred to a station controller for traceability and analysis — enabling tighter process control and quality visibility.

• Visibility & Operator Feedback
  An OK/FAIL LED indicator located on the motor end provides clear visual feedback at a glance, improving usability and reducing errors on the production floor.

• Long Battery Life & Quick Swap

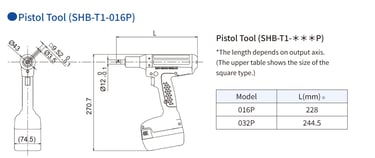

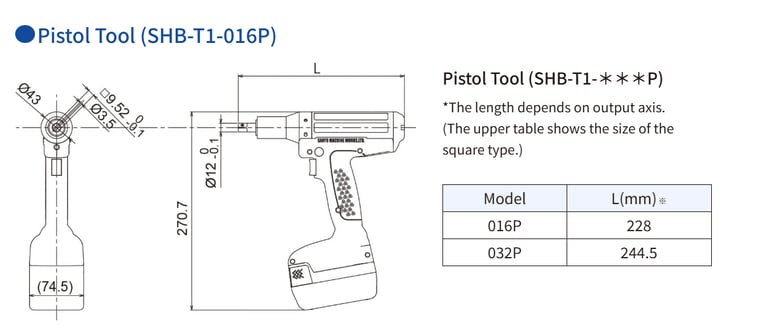

  A single battery charge can support up to approximately 2,000 fastening cycles (based on SHB-T1-016P at maximum torque on a hard joint). Quick battery swaps allow work to continue without communication delays, boosting productivity.

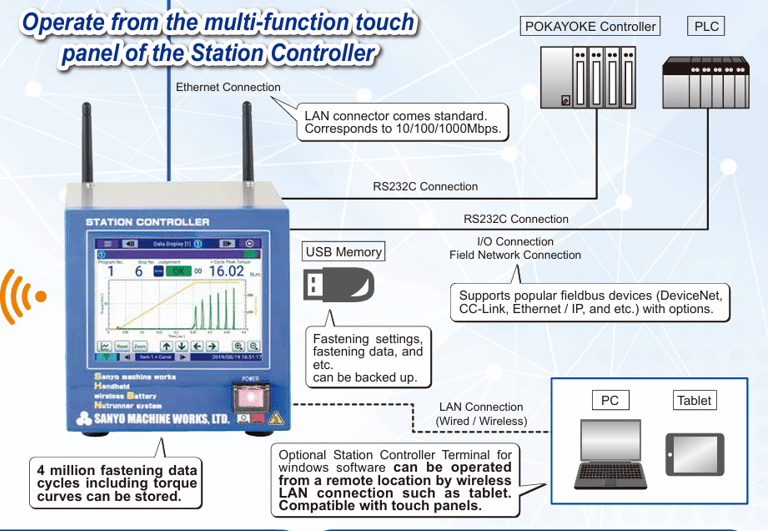

Station Controller & Communication

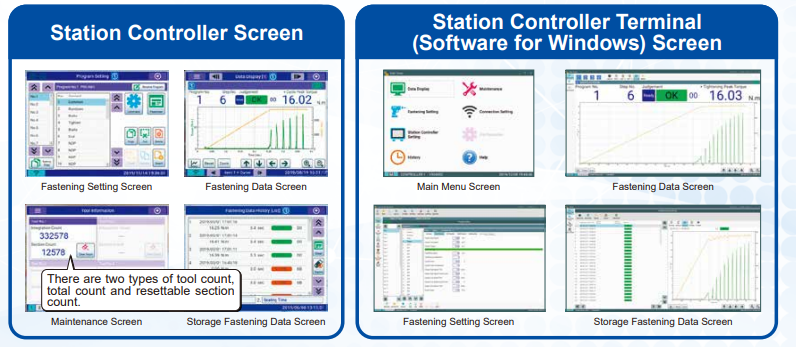

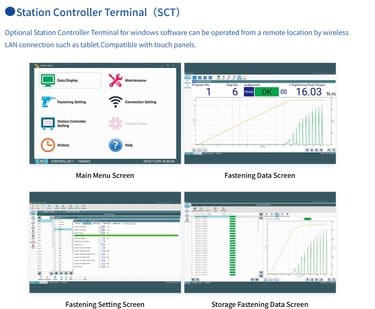

The SHBN system includes a high-performance Station Controller that can manage up to four tools simultaneously. Operations such as displaying fastening data, accessing history, and adjusting settings are available through a touch panel LCD screen.

The controller supports high-capacity data storage (up to 4 million records including torque waveforms) and offers connectivity options including USB backup, wired LAN, fieldbus communication interfaces (DeviceNet, CC-Link, Ethernet/IP, etc.), and optional wireless LAN support for flexible networking and integration with factory systems.

Why Choose SHBN Wireless Nutrunners

The SHBN series delivers a powerful combination of mobility, precision, and data-enabled control that supports demanding production requirements. As a wireless solution, it removes the constraints of cables while maintaining high tightening accuracy and process traceability — ideal for automotive, electronics, and advanced manufacturing applications where quality and flexibility are essential.

With advanced impact control, batch count functions, strong data logging, and robust communication options, SHBN nutrunners help manufacturers improve tightening quality, reduce operator fatigue, and enhance overall assembly system efficiency.
